FNFAL Barrel Assembly and Front End Parts

Israeli parts are on the Israeli FAL Parts page.  Inch/Commonwealth/L1A1 parts are located on the Inch/Commonwealth Page.

Barrel Assembly/Front End Parts


Breeching washers(shims) to correct barrel timing and L1A1 breeching washers, new.  Please specify thickness needed, sizes available are .004, .006, .008, .010, .015, .058.


Bipod leg, for light barrel original bipods such as G1 or Stg.  Right or left side available.  Specify if early G1 or later Stg, there is a difference on the top mounting section.  Send pic if not sure.  Only a few here.


Bipod leg, for light barrel original bipod, later version with reinforcement raised rib around screw head, only one here, good condition.  Left side only.


Bipod leg spring, for light barrel original bipods such as G1, Stg-58 or Argentine, new


Carry handle, Imbel, good condition


Original Belgian Heavy Barrel Carry Handle, black synthetic, new.  Only a few here.


Smith Enterprises Vortex flashhiders for AR15, FNFAL(custom made, special order for Gunthings), AK47 and AK74. Manufactured from 8620 carburized and hardened steel, magnesium phosphate finish. All allow connection of Smith Ent sound suppressors. Spiral outer grooves allow easier removal of suppressor. See video for comparison to standard AR15 flashhider.  FNFAL $70, AK47 $70, AK74 $75.

Comparison video, https://youtu.be/i3dFnENc7iM

Flash hider, Stg-58, four prongs, ribbed, unaltered full length, Austrian, very good


Flash hider, Stg-58, four prongs, ribbed, unaltered full length, Belgian marking, Belgian made for Austria.  Very good  *only one here


Belgian manufactured FNFAL Heavy Barrel coupler/combo device, new   ** 2 in stock


Belgian style Short Combo device flash hider/muzzle brake, various countries, most likely Imbel or SA, rearward positioned wrench flats, used condition.


Belgian Short Combo device flash hider/muzzle brake, with Belgian marking and wrench flats in center location, excellent condition.


Belgian G1 flash hider, quick detach for G1 lugged barrel, has lug on bottom for bayonet, good condition


Belgian G1 flash hider, quick detach for G1 lugged barrel, has lug on bottom for bayonet, new  *only 2 here


Gas Block, original metric FAL light barrel standard gas block with solid ears.  Retaining pin is $3 extra.


Gas Block, original metric Belgian manufactured FAL light barrel standard gas block with solid ears.  Nice shape except regulator treads were shortened by a couple threads to remove a damaged thread.  Functions OK.  Retaining pin is $3 extra.    **only one here


Gas Block, original Israeli heavy barrel gas block, new.  Gas block pin is $3 extra.  Email for a quantity price quote, approx 190 in stock.


Gas Block, original Belgian heavy barrel, new.  Pin $3 extra.

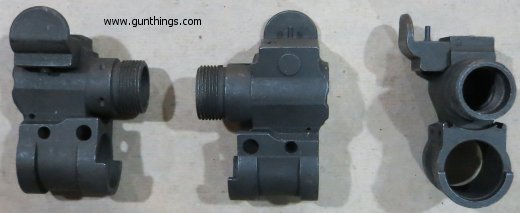

Gas Block, FNFAL X8E2 trials rifle gas block.  Offset sight post, single ear.  Original from 1954 and extremely rare. New, includes sight post. Only 3 in stock.  Pin $3 extra.


Gas block retaining pin, new.  Specify if for standard light barrel or heavy barrel.  Diameter is the same, HB is longer.


Gas piston, made in USA, new   **only 10 in stock


Gas piston, metric, original military piston.


Gas piston, original Stg-58 Austrian with internal threaded end, metric.   **only a few here


Gas piston spring


Gas plug plunger spring, new


Gas plug plunger ring, the part that retains plunger in gas plug (slips on the end of the plunger and the plunger end is tapped with a hammer to rivet the end into the ring), new


Gas plug, for FN49 rifle (not FAL), original, new    *only two in stock


Gas regulator


Gas regulator spring


Gas tube nut, screws into upper receiver, holds rear of gas tube and carry handle, original, new


FNC Gas Tube, for the FNC 5.56 rifle.  Used, nice shape.  Only 3 in stock.  $125 each

FNC Handguards.  For the FNC 5.56 rifle.

Right side handguard half, metal with plastic.  Plastic is scratched, good condition.  4 here.  $50 each

Right side plastic only.  Excellent condition.  4 here.  $50 each

Left side metal only.  2 here.  $40 each

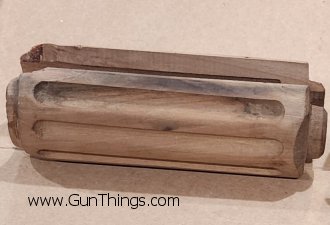

Handguard, walnut, Belgian FALO, heavy barrel. **only 2 in stock

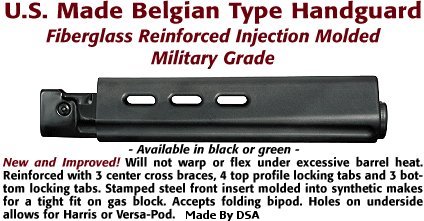

FAL Handguards, synthetic, bipod cut, black, made in USA by DSA with screw, new


FAL Handguards, synthetic, bipod cut, made by Imbel in Brazil, with screw, good condition.


FAL Handguards, synthetic, bipod cut, made by Imbel in Brazil, without screw, used, cracked or chips in plastic, usable as/is or repairable, per pair


FAL Handguard, left side only (cocking handle side), non - bipod cut, South African, good condition   ***only a few here

***If you have any South African right sides to sell or trade, please call or email!!!

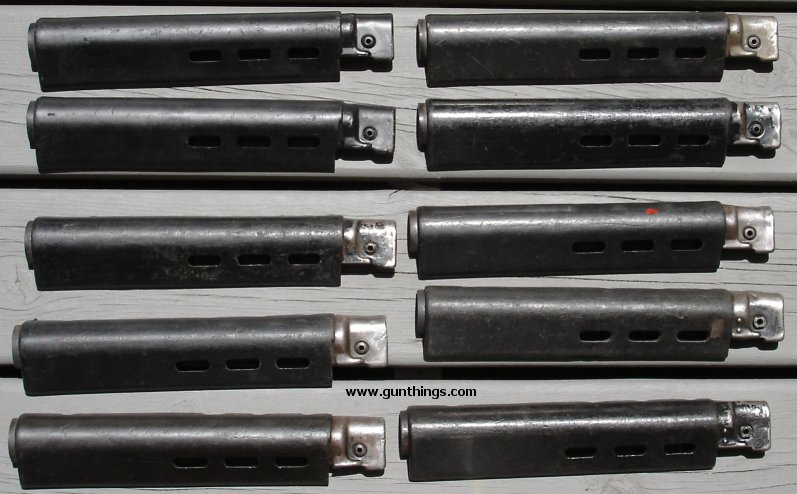

FAL Handguards, synthetic, non-bipod cut, original military handguards, with screw, good condition.  Slight mismatch of plastic edge at front top near gas regulator, could be altered to match.  Only 2 pair here.


FAL Handguard retaining ring, otherwise known as handguard rear support.  Original metric, used.


Sight post, for FNFAL metric gas block, fit Imbels, South African, Austrian, FN, etc.  Available in 4 heights.  Height is identified by the number of dots on the sight.  Tallest is 4 dots, shortest is no dot or one dot.  Most guns use a 2 dot or 3 dot post.


Sight post, fits early Belgian open ear gas blocks, Israeli gas blocks, high open ear gas block Argentine models (does not fit standard metric gas block). new  Uses stamped metal one piece spring for $3, this is a different design than the metric post.  Sizes in stock;  negative 3, negative 2, positive 3, positive 4.  Stamped metal spring for this post $3.


Sight post spring for metric FAL


Sight post fixing plate/detent plate for metric FAL


Sling swivel screw, for barrel/front swivel, new
