Steve's rifle above built by Randy Kline in Texas using a British L1A1 kit


FNFAL and L1A1 Kits

Please consult the BATFE for official rulings before assembling a rifle. assumes no responsibility for kits or parts which are illegally used.  The locking shoulder controls headspace and the headspace measurement cannot be determined until the barrel is installed in your upper receiver.  If the locking shoulder included with your kit is not the size you need, we have all sizes of locking shoulders available for $33 each.  Tools to determine headspace are on our tools webpage.  We also sell the Gunplumber Arizona Response Systems workbook and DVDs which explain how to build the rifles, see the books webpage.



Israeli FNFAL Heavy Barrel Kit.  Original Israeli lower receiver with Hebrew markings.  Original Israeli bipod, bipod coupler, flashhider, barrel, with sharp and shiny bore.  Breech threads are already altered from Israeli thread to fit standard metric receiver threads.  Bolt carrier is cut for forward assist to function with the original new Israeli cocking handle.  Bolt and carrier are Imbel.  Butt stock and buttplate are new Israeli parts, butt swivel is missing(DSA sells a repro for $10 or $15).  The handguard spacer is a reproduction.  The hinge pin is an exact reproduction except the washer and nut is original Israeli.  Carry handle and many small parts are new Israeli parts.  $1200 and $22 shipping.  Credit or debit card fee is 2.5 % on this kit.

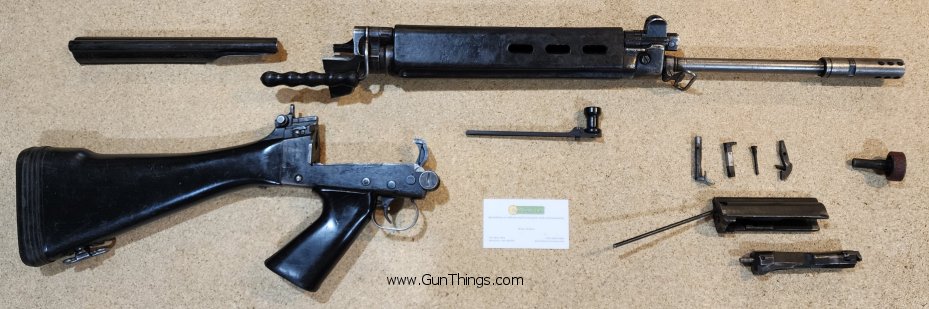

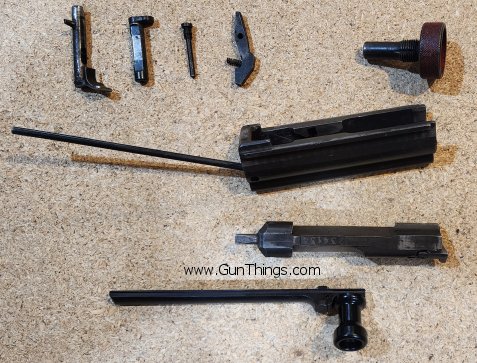

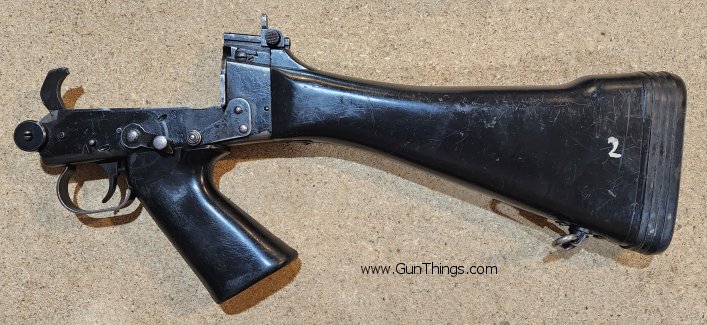

Imbel FAL Kit with original Imbel barrel, one magazine and blank firing device.  Manufactured in Brazil by Imbel for the Brazilian military and other countries, this FAL was produced under FN license using FN prints.  These kits have like new bores and include all items in the photo.  Serial numbers match.  Very limited quantity, these were imported long ago and can no longer be imported with original barrels.  $585.00


Above rifle built and barrel shortened by ARS

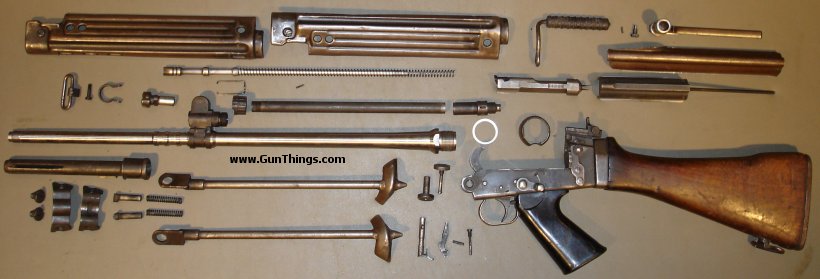

FNFAL G1 Kit with new US made barrel.  Manufactured by FN in Belgium for Germany in the late 1950s before Germany adopted the HK produced G3.  All kits have wood butts and a bipod.  The US made barrel has the original gas block mounted and is bipod cut to accept the included original bipod.  The barrel muzzle is threaded and will accept all FAL flash hiders and muzzle brakes which are left hand thread (if an Stg-58 flash hider is used, this kit would look exactly like an Austrian Stg-58 FAL).  The original G1 quick detach flash hider is included, but the barrel is not lugged for the G1 flash hider.  The G1 flash hider could be retained by a pin or other method.  Locking shoulder will be included.  Small metal bipod anti-rotater is not included, they were missing from the kits(the part can be easily made or the bipod functions without it).  $725.00  **only 10 kits in stock

Above rifle was built using an original G1 barrel.  The above kit would look similar.


See Links Page for builders and refinishers.
